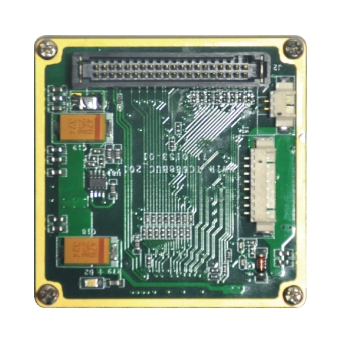

Тепловизионные модули TC688HQ

Код товара: TC688HQ 640 x 512 пикселей

Категории: Ядро тепловизионной - Затвор ядра

Скачать PDF E-mail Поставщику Разместить Ваш запрос

+86 (0)571 8720 9887 +86 (0)571 8512 5358 overseas@ulirvision.com evaxaiohz

TC688HQ are high level shutter thermal imaging camera cores which can be used for various applications such as defense & surveillance system integration, thermal night vision and so on.

Основные черты

◆ VOx Detector and DDE Enhance Technologies
◆ NETD≤50mK
◆ Auto focus
◆ Pseudo color display
◆ Customizable interface

Detector Data
Material	Vox
IR resolution	640×512
Pixel pitch	17μm
Spectral range	8～14μm
NETD/Sensitivity	≤50mK
Lens Data
Lens(optional)	25mm、35mm、50mm、75mm athermal lens, 100mm、150mm motorized lens, 25~100mm、30~150mm、25~225mm continuous zoom lens、60/150mm dual FOV lens and other lenses are optional
Image Performance
Image enhancement	DDE
Frequency	50Hz
Amplification	1X~ 4X continuous
Polarity/LUT mode	Black hot/White hot
Pseudo color	Support
Startup time	10s
Image gain	Auto/Manual
Focusing	Auto-focus(Optional)
Cross cursor	Movable
Image frozen	Yes
Interface
Primary electrical connector	40pin
Control	RS232
Analog video output	PAL
Digital video output	Cameralink/LVDS optional
Keypad	4 button keyboard
Power System
Working voltage	DC: +4V～+5.5V(Standard: 5V)
Power consumption	≤2.5W (typical)
Reverse polarity protection	Yes
Over&Under voltage protection	Yes
Environment Parameters
Operating temperature range	-40℃～+60℃
Storage temperature range	-50℃～+70℃
Humidity	5%～95% (non-condense)
Shock	GJB150-16 2.3.1, 100g; 6msec
Vibration	GJB150-16 2.3.1, 4.3g 3axes, 8h
Physical data
Size	40mm×42.5mm×36mm(without lens)
Weight	≤100g(without lens)
Mounting	4 M2×0.4, 1/4” -20
Packing
Standard	Thermal imaging core, serial interface cable, manual CD, calibration certificate, warranty card
